Installation instructions are included in the transponder packaging when you purchase a SunPass Mini or a SunPass PRO. While both are designed to adhere to your vehicle's windshield, certain vehicles have windshields that may prevent your transponder from being read properly, and some vehicles may require the transponder to be mounted to the bumper.
If you are unsure about whether your vehicle has one of these windshields, contact the dealer where you purchased your vehicle. If your transponder is not always being read when driving through SunPass lanes, please call the SunPass Customer Service Center at 1-888-TOLL-FLA (1-888-865-5352).

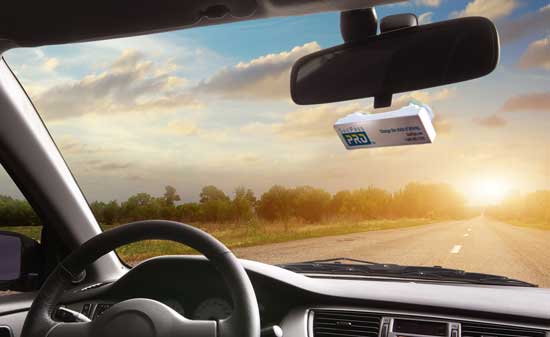

The vehicles listed below may be equipped with special windshields containing metal oxide in the glass. This can prevent your SunPass transponder from being read. If you are unsure about whether your vehicle has one of these windshields, contact the dealer where you purchased your vehicle. Customers should mount the transponder to the top center of the windshield, when possible. If a plastic cover for the rearview mirror exists in this location, mount the transponder next to that location.
this table displays the Make, Model, Year and Where to Install options for vehicles with problematic windshields.
| Model | Years | Where to Install |
|---|---|---|
| Bentayga | 2018-2019 |
Top, left or right of rear-view mirror
|
| Model | Year | Where to Install |
|---|---|---|
| All 3 Series | 1998-2008 |
Top, left or right of rear-view mirror
|
| All 7 series 740 745 750 760 |
1999-2008 |
Top, left or right of rear-view mirror
|
| All 7 series 740 745 750 760 |
2009-2020 | Top center (in black shading) |
| All 8 series | 2019-2020 |
Top center (in black shading)
|
| Model | Year | Where to Install |
|---|---|---|
| Rendezvous | 2002-2005 |
Top, left of rear-view mirror post
|
| Model | Year | Where to Install |
|---|---|---|
| Catera | 2001 Only |
Top, right of rear-view mirror in black shading
|
| Model | Year | Where to Install |
|---|---|---|
| Venture | 1997-2002 |
Top-left corner
|
| Model | Year | Where to Install |
|---|---|---|
| XF | 2016-2020 |
Top center (in black shading)
|
| XJ & XJL | 2017-2020 | |
| E-Pace | 2018-2020 | |
| F Pace (SUV) | 2017-2020 | |
| XE | 2015-2020 | |
| I-Pace | 2019-2020 |
| Model | Year | Where to Install |
|---|---|---|
| Urus | 2019-Current |
Top center (in black shading)
|
| Model | Year | Where to Install |
|---|---|---|
| Range Rover | 2003-2008 |
Top, left or right of rear-view mirror
|
| Range Rover (Must use portable transponder) | 2010-2013 |
Top center
(in black shading) |
| Range Rover (Must use portable transponder) | 2014-2019 |
Top, driver side of mirror (in black shading)
|
| Range Rover Evoque (Must use portable transponder) | Early 2012 Models |
Sunroof-fwd edge centered
|
| Range Rover Evoque (Must use portable transponder) | Late 2012 Models - 2019 |
Top, left of mirror in cut-out
|
| Range Rover Velar (Must use portable transponder) | 2018-2019 |
Top, driver side of mirror (in black shading)
|
| Discovery Sport (Must use portable transponder) | 2015-2019 | |
| RR Sport (Must use portable transponder) | 2016-2016 | |
| LR2 | 2008-2015 |
Bottom-left corner beyond heating elements
|
| DLR3 | 2004-2016 | |
| LR4 | 2009-2016 | |
| Discovery | 2017-2020 |
Bottom-left corner beyond heating elements
|
| Range Rover | 2010-2020 |
Bottom-left corner beyond heating elements
|
| RR Sport | 2016-2020 |
| Model | Year | Where to Install |
|---|---|---|
| Continental | 2017-2020 |
Top-left of mirror module glass(in black shading)
|
| Navigators | 2018-2020 |
Top-left of mirror module glass(in black shading)
|
| Model | Year | Where to Install |
|---|---|---|
| 57 & 62 | 2002-2012 |
Bottom center
|
| 57-S | 2007-2012 |
Top center
(in black shading) |
| 62-S | 2008-2012 |
Top center
(in black shading) |
| Model | Year | Where to Install |
|---|---|---|
| CL Class (Equipped with “Night View Assist”) | 2007-2014 |
(* See note)
|
| E Class (Equipped with “Night View Assist”) | 2010-2012 | |
| S Class | 2008-2020 | |
| E Class (Except Cabriolet) | 2017-Current | |
| S Class Coupe | 2015-2019 |
Center, below mirror module (in cut-out)
|
| CL Class | 2001-2006 |
Top center (in black shading)
|
| GL Class | 2007-2016 | |
| ML Class | 2006-2012 | |
| R Class | 2006-2012 | |
| S Class | 2000-2007 | |
| SL Class (except SL500 & SL600) | 2003-2008 | |
| GLS Class | 2018-2020 | Top cut-outs or bottom-center cut out |
| * Contact Customer Service for the proper mounting location on Mercedes-Benz CL, E, & S Class vehicles equipped with “Night View Assist”. | ||
| Model | Year | Where to Install |
|---|---|---|
| Silhouette | 1997-2002 |
Top-left corner
|
| Model | Year | Where to Install |
|---|---|---|
| Aztek | 2001-2005 |
Top, left of rear-view mirror post
|
| Montana | 1999-2002 |
Top-left corner
|
| Transport | 1997-1998 |
| Model | Year | Where to Install |
|---|---|---|
| Cayenne | 2003-2007 |
Top, left or right of rear-view mirror
|
| MACAN | 2015-2019 |
Top, left or right of rear-view mirror
|
| Model | Year | Where to Install |
|---|---|---|
| Cullinan | 2019-Current |
Top, left or right or rear-view mirror
|
| Dawn | 2015-2020 | |
| Ghost | 2010-2020 | |
| Phantom | 2004-2020 |
Top, left or right of rear-view mirror
|
| Wraith | 2014-2020 |
Top center (in black shading)
|
| Model | Year | Where to Install |
|---|---|---|
| XC90 | 2010-2014 |
Top, left or right of rear-view mirror
|
Other Unique Windshield Features
Click a vehicle make below to determine if this applies to your vehicle.
| Model | Year |
|---|---|
| Vanquish | 2001-2007 |
| Vantage | 2003-2008 |
| Model | Year |
|---|---|
| A6 | 1998-2003 |
| A8 | 1998-2003 |
| Model | Year |
|---|---|
| Roadmaster Sedan | 1993-1996 |
| Lesabre | 1992 Only |
| Park Avenue | 1991-1992 |
| Model | Year |
|---|---|
| Concours | 1993-1998 |
| Deville | 1989-1999 |
| Eldorado | 1992-2002 |
| Fleetwood | 1989-1992 |
| Fleetwood | 1993-1996 |
| Seville | 1992-1999 |
| Sixty Special | 1993 Only |
| Touring Sedan | 1992-1998 |
| Model | Year |
|---|---|
| Caprice | 1993-1996 |
| Corvette ZR-1 | 1990-1995 |
| Impala | 1993-1996 |
| Model | Year |
|---|---|
| Crown Victoria | 1988-1992 |
| Taurus | 1986-1991 |
| Transit Connect | 2011-2015 |
| Model | Year |
|---|---|
| S-Type | 2000-2004 |
| VDP | 1999-2004 |
| XJ Series | 1999-2004 |
| XK Series | 1999-2004 |
| XF | 2010-2015 |
| Model | Year |
|---|---|
| Continental | 1988-1992 |
| Town Car | 1990-1992 |
| Model | Year |
|---|---|
| 626 | 1995 Only |
| 929 | 1988-1991 |
| Model | Year |
|---|---|
| Grand Marquis | 1988-1992 |
| Sable | 1986-1991 |
| Model | Year |
|---|---|
| Custom Cruiser- Station Wagon |
1990-1996 |
| Eighty-Eight | 1992 Only |
| Ninety-Eight | 1991-1995 |
| Model | Year |
|---|---|
| Bonneville | 1992 Only |
| Model | Year |
|---|---|
| S80 | 2002-2004 |
| XC90 | 2002-2004 |
Vehicles That Require Bumper Mount Transponders
The following vehicle types must use a Bumper Mount Transponder. The exterior SunPass Bumper Mount Transponder comes with special screws and a special wrench. If your car is not equipped for a front license plate it may require modifications before the SunPass Bumper Mount Transponder can be attached. SunPass provides the exterior transponder, special screws and special wrench, but does not install the SunPass Bumper Mount Transponder.
Click a vehicle make below to determine if this applies to your vehicle.
| Model | Year |
|---|---|
| Continental GT | 2004-2009 |
| Continental (Flying Spur) | 2006-2009 |
| Model | Year |
|---|---|
| Roadmaster Wagon | ALL |
| Model | Year |
|---|---|
| Lumina APV (Van) | ALL (1990-1996) |
| Model | Year |
|---|---|
| Silhouette | 1990-1996 |
| Model | Year |
|---|---|
| Transport | 1990-1996 |
| Model | Year |
|---|---|
| Panamera (Turbo) | 2010 only |
| Model | Year |
|---|---|
| Model S (Nose Cone Style) | 2012-2016 |
| Model | Year |
|---|---|
| ALL |
